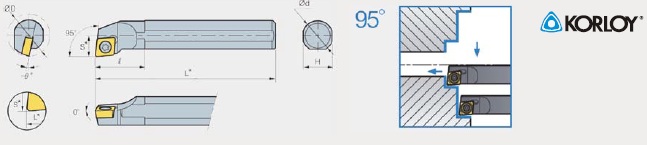

Furatesztergáló kések – SCLCR-L A410 510
Termékek >> Esztergaszerszámok >> Váltólapkás esztergakések >> Furatesztergáló kések
Katalógusszám:
A410 510
| Méretkód | Irány | ØD | Ød | H | L | S | θ° | l | |
| R | L | ||||||||
| S08K-SCLCR/L-06 | ● | ● | 10 | 8 | 7 | 125 | 5 | -15° | 14 |
| S10K-SCLCR/L-06 | ● | 12 | 10 | 9 | 125 | 6 | -13° | 14 | |
| S10M-SCLCR/L-06 | ● | ● | 12 | 10 | 9 | 150 | 6 | -13° | 14 |
| S12M-SCLCR/L-06 | ● | ● | 16 | 12 | 11 | 150 | 9 | -10° | 25 |
| S12M-SCLCR/L-09 | ● | ● | 16 | 12 | 11 | 150 | 9 | -10° | 25 |
| S16R-SCLCR/L-09 | ● | ● | 20 | 16 | 15 | 200 | 11 | -12° | 32,5 |
| S20S-SCLCR/L-09 | ● | ● | 25 | 20 | 18 | 250 | 13 | -5° | 38 |
| S25T-SCLCR/L-09 | ● | ● | 32 | 25 | 23 | 300 | 17 | -6° | 45 |
| S25T-SCLCR/L-12 | ● | ● | 32 | 25 | 23 | 300 | 17 | -6° | 45 |
| S32U-SCLCR/L-12 | ● | ● | 40 | 32 | 30 | 350 | 22 | -10° | 50 |
| S40V-SCLCR/L-12 | ● | ● | 50 | 40 | 37 | 400 | 27 | -8° | 60 |
| A20Q-SCLCR/L-09 | ● | 25 | 20 | 19 | 180 | 12 | -8° | 38 | |
